150F Panel False Ceiling System.

Panel (Galvanized Steel):

Excel Sales make 150F Panels are roll formed using state of the art roll forming lines to 150mm wide x 17mm deep x 0.5mm TCT Galvanized Steel as per IS-513 with flush edges. Panel shall be coil coated on external surface only. When two panels are to be joined, they shall be joined together by means of panel coupler suitable for 150F Panel.

Panel Details (Aluminium):

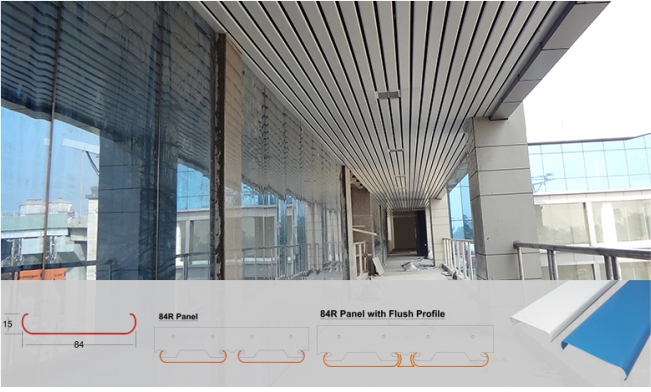

Excel Sales make Round edge panels, 84 mm wide x 15 mm deep x length up to 5 mtr. formed out of 0.5 / 0.6 / 0.7 mm thick TCT Aluminium alloy (AA) 8011-H3 fixed on carriers. Panel shall be powder coated / coil coated on external surface only. When two panels are to be joined, they shall be joined together by means of panel coupler suitable for 84R Panel.

Paint Detail:

Coil coated panel shall be chromatized for maximum bond between metal and paint, enamelled twice under high temperature, one side with full primer and finish coat, the other side (Inner side) with a primer coating and skin coat on continuous paint line or Powder coated panel shall be 50 microns thick on exposed surface.

Perforation Details:

2mm dia, 7mm Centre to Centre in diagonal Pattern. Aluminium Flush Profile of 0.50 mm thick and maximum length up to 2.4 mtr. will be inserted in 16 mm gap between the panels.

Carrier:

Carrier shall be 32 mm wide and 39 mm deep with cutouts to hold the panel in a module of 100 mm, carrier shall be roll formed out of 0.5 mm Galvanized steel and cut to a standard length of 2.4 mtr. When two or more carriers are to be joined, they shall be joined together by means of carrier coupler which will clip on to the holes in the sides of the cut carrier and hold them firmly in place while maintaining the module of 100mm centre to centre.

Installation detail:

Edge profile shall be L- shaped, roll formed out of 0.5mm Galvanized steel / aluminium strips with coil coating or powder Coating in standard colors.

Edge Profile:
